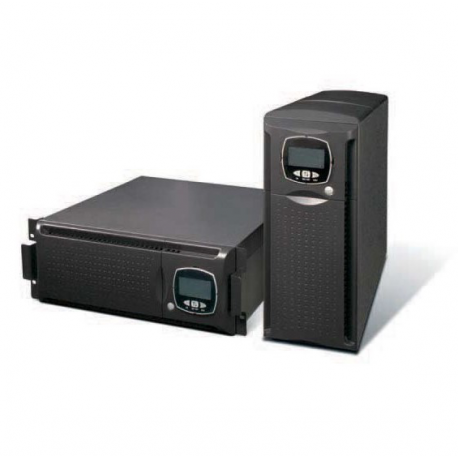

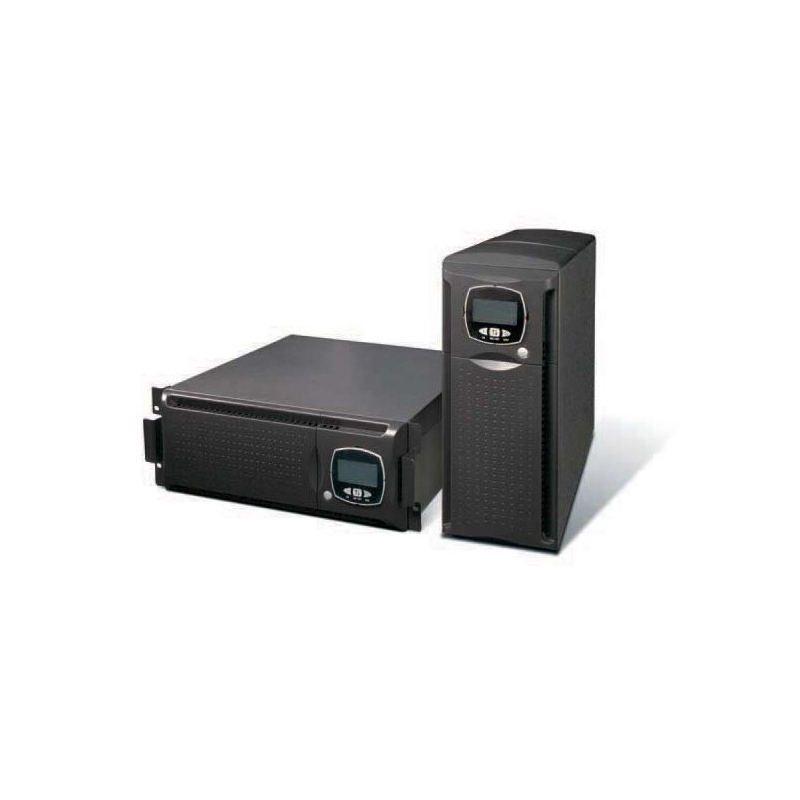

Onduleur 1kVA à 10 KVA

Description

This device represents:

  • The best solution for powering sensitive and mission critical applications and security, electro-medical, and emission devices. It guarantees maximum reliability 24 hours a day.
  • The flexibility of installation and use with digital display, user-replaceable batteries and multiple communication possibilities make it the ideal UPS. It can be installed on the floor or in a rack for network applications.
  • The series is available in 3300-4000-5000-6000-8000-10000VA versions with on-line double conversion technology (VFI). The load is always supplied by the inverter which provides a sinusoidal voltage, filtered and stabilized in voltage, shape and frequency. The input and output filters considerably increase the immunity of the load against network disturbances and lightning.

Technology and services:

Selectable Economy Mode and Smart Active Mode functions.

Diagnostic:

Standard digital display, RS232 and USB interfaces to PowerShield3 software included, slot

SPECIFICATIONS

EASY INSTALLATION

  • Possibility of installation on the ground (tower version) or in a bay (rack version) simply by pulling and rotating the LCD panel (using the key provided).
  • Very low noise (<40dBA): for installation in any type of environment thanks to digital control ventilation depending on the applied load and the use of an inverter with high switching frequency (> 20kHz, value greater than hearing threshold).
  • Possibility of external maintenance bypass connection with uninterrupted switching
  • Characteristics guaranteed up to 40 ° C ambient.
  • Availability of 2 IEC type output sockets with thermal protection.
  • On the 5, 6, 8 and 10 kVA models, it is also possible to program two 10A output sockets (PowerShare function) in the event of a network failure.

SELECTING OTHER OPERATING MODES

  • On line
  • Economy Mode: to increase efficiency (up to 98%), it allows the selection of Line Interactive (VI) technology to supply insensitive loads from the network. The function is programmable by software or manually configurable by the UPS
  • Smart Active: the UPS autonomously decides the operating mode (VI or VFI) depending on the quality of the network
  • Emergency mode: the UPS can be selected to operate only in the event of a power failure (mode recommended for safety signals)
  • Operation on frequency converter (50 or 60Hz)

EASY INSTALLATION

  • Supports mismatched loads (IT loads with a crest factor of up to 3: 1)
  • High short-circuit current on bypass
  • High overload capacity: 150% on the inverter (also in the absence of a network)
  • Filtered, stabilized and reliable voltage (On Line double conversion technology (VFI according to
  • EN50091-3 regulation) with filters for the suppression of atmospheric disturbances
  • Phasing of the load: UPS input cosphi close to 1 and sinusoidal current absorption

HIGH BATTERY RELIABILITY

  • Automatic and manual battery test
  • Reduced residual component (harmful for batteries) thanks to the “LRCD” system (Low Ripple Current Discharge)
  • Possibility of replacing the batteries by the user, without stopping the device or the power supply to the load (Hot Swap)
  • Extension of unlimited autonomy thanks to dedicated Battery Boxes in modular format
  • The batteries are not required in the event of a power outage <40m sec (high hold up time) and in the presence of large differences in the input voltage (from 84V to 276V) Vac

OTHER SPECIFICATIONS

  • Selectable output voltage (220-230- 240V)
  • Auto-restart (automatic restart as soon as the network returns, programmable by software)
  • By-pass on: when the machine is stopped, it automatically operates on by-pass and batteries are charging
  • Shutdown due to minimum load
  • Notice of end of discharge
  • Delayed start-up.
  • Full microprocessor control
  • Automatic bypass without interruption
  • Use of IMS (Insulated Metallic Substrates) modules
  • States, measurements, alarms available on backlit LCD display
  • UPS digital update (upgradable flash)
  • Input protection by means of a resettable thermal circuit breaker.
  • Standard back-feed protection: to avoid energy returns to the network
  • Manual switching to bypass
  • Microsoft certified product.

ADVANCED COMMUNICATION

  • Advanced, multi-platform communication for all operating systems and network environments: PowerShield3 monitoring and shutdown software included, with integrated SNMP agent, for Windows 9x, ME, NT 4.0, 2000, XP operating systems, Vista and 2003 server; Mac OS X, Linux, Novell, and other operating systems.
  • Plug and play function
  • USB port
  • RS232 serial port
  • Slot for the installation of communication cards.

MODELS

3300VA/
2300W
4000VA/
2400W
5000VA/
3500W
6000VA/
4200W
8000VA/
6400W
10000VA/
8000W

IN

Nominal voltage 220-230-240 Vac
Minimum voltage 164 Vac @ charge 100% / 84 Vac @ charge 50%
Frequency 50/60 Hz ± 5 Hz
Power factor > 0.98
Current distortion ≤ 7%

BY PASS

Voltage tolerance 180 - 264 Vac (selectable in Economy Mode and SMART ACTIVE Mode)
Frequency tolerance selected frequency ± 5% (programmable)

OUT

Nominal voltage 220 - 230 - 240 Vac selectable
Distortion <3% with linear load / <6% with non-linear load
Frequency 50/60 Hz selectable
Static tolerance 1.5%
Dynamic tolerance ≤ 5% in 20 ms
Waveform Sinusoidal
Crest factor (lpeak/lrms) 3:1

MODELS

3300VA/
2300W
4000VA/
2400W
5000VA/
3500W
6000VA/
4200W
8000VA/
6400W
10000VA/
8000W

BATTERY

Recharge time 4-6h

OVERLOAD

100% < Charge <110% 1'
110% > Charge <150% 4"
Charge > 150% 0.5"

INSTALLATION INFO

Weight 38 40 60 62 80 85
Dimensions 455 x 175 x 520 tower 175(4U) x 483 x 520 rack 455 x 175 x 660 tower 175(4U) x 483 x 660 rack 2 x 455 x 175 x 660 tower 2 x 175(4U) x 483 x 660 rack
Efficiency On Line 92%
Efficiency Line-interactive/Smart Active 98
Protections Surintensité - court-circuit - sur tension - sous tension thermique - décharge profonde des batteries
Communication USB/RS232 + slot pour interface de communication
Safety standards EN 62040-1 EMC EN 62040-2 Directives 73/23 - 93/68 - 2004/108 EC EN 62040-3
Operating temperature 0°C / + 40°C
Relative humidity < 95% non condensée
Sound level <40 dBA à 1m < 45 dBA à 1m
Internal maintenance bypass non

INCLUDED

3300VA/2300W - 4000VA/2400W

  • 2x10A cables
  • 1xIEC-16A socket
  • Software
  • Serial cable
  • Bay mounting kit + front panel key

5000VA/3500W - 6000VA/4200W - 8000VA/6400W - 10000VA/8000W

  • 2 cable glands
  • Connection form
  • Software
  • Cable
  • Series
  • Bay mounting kit + front panel key
