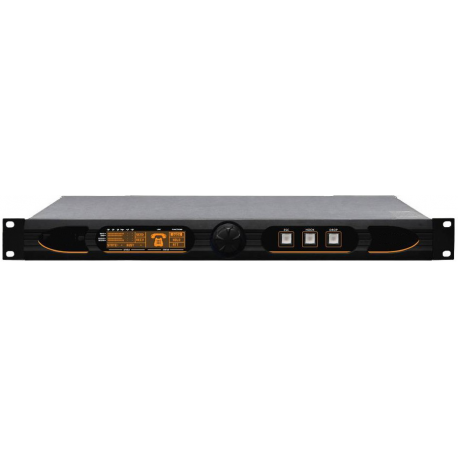

X1 - X2 1 ligne/2 lignes
More info
- 1 and 2 line models
- POTS / PSTN and GSM Quad Band (option)
- AGC digital processor with 2 EQ bands
- Echo cancellation and noise gate
- Send and receive separate
- XLR Balanced In / Out (mic / line)
- Integrated sound generator
- Auto answer and disconnect
- Remote control and dialing software
SPECIFICATIONS
The StudioTel X1 and StudioTel X2 are the third generation of telephone hybrids, delivering exceptional sound quality.
The StudioTel X1 can handle one POTS / PSTN line while the StudioTel X2 can use two.
In addition, in each fixed line is available a switch "fixed to wireless mode" via one or two optional GSM When Band module to establish a telephone connection where the wired line is not available.
The StudioTel X1 and X2 telephone interface perfectly covers telephone lines around the world. The user chooses the settings for the desired country via the software.
DSP audio processing combined with automatic gain control provide a loud and clear reception level that is always available even when the audio conditions of calls change. The audio controls available on the StudioTel X1 and 2 are: Echo cancellation with a range of 16 to 32ms, 1 A.G.C stage, 2 band equalizers and a sound attenuation option. In addition, the "hold" function allows you to put the interlocutor on hold before picking him up On Air.
The StudioTel X1 and X2 front control panel allows the user to easily manage phone calls while the LCD shows the transmit and receive audio level.
TECHNICALS SPECIFICATIONS
GENERAL |
|
| Dimensions | 434x351x44mm (1 rack unit) |
| Voltage | 230Vac / 110Vac 50 Hz / 60 Hz 30VA |
| Feed type | Switching power supply |
| Processing architecture | Full digital, based on a 24bit / 100Mhz DSP. Signal processing is performed by a linear phase filter |
| Weights | 5 Kg |
| Operating temperature | -5°C / +50°C |
ANALOGUE INPUT MODULE - SEND |
|
| A/D Conversion | 24bit Sigma-Delta Conversion (Crystal CS4272) |
| Connectors | XLR, female - Electronically balanced |
| AD Clipping Point | +20.0dBu |
| Nominal operating level | From –12.0dBu to +12.0dBu (0.1dBu Step) |
| Line impedance | 10 kΩ (electronically balanced available) EMI– suppressed |
| Distortion | Less than 0.01% TDH + NOISE (0.0dBu 1Khz) |
| AD Dynamic Range | 108 dB RMS (110 dB A weighted) |
| Input modes | Mono |
MODULE ANALOGIQUE - RECEPTION |
|
| Conversion D/A | 24bit Sigma-Delta Conversion (Crystal CS4272) |
| Connecteurs | XLR, male - balancée électroniquement |
| Niveau de sortie | -12.0dBu to +14.0dBu (0.1dBu Step) – Max (+19dBu) |
| Source d'impédance | 10 Ω |
| Charge d'impédance | 600 Ω ou supérieur |
| Distorsion | Moins de 0.01% TDH+BRUIT (0.0dBu @ 1Khz) |
TELEPHONE GSM MODULE |
|
| Type | Quad-Band GSM 850/900/1800/1900 Mhz |
| Operating temperature | -30°C ≈ +75°C |
| Dimensions | 90 x 130 x 38 mm |
| Weights | < 190 g |
| Available voltage | De 8 à 30Vac |
| Consumption @12V | Power down 0.5mA, Sleep mode 29mA, Speech mode 184mA |
CONTROLE INTERFACE |
|
| Digital GPIn GPOut | 4x entrée GP opto-couplée - 4x sortie GP Open Collector opto-isolated |
| Serial Interface | 1x or 2x RS-232 Serial protocol ports EMI filtered |
| USB | 1x Universal Serial Bus port – B type EMI filtered |
