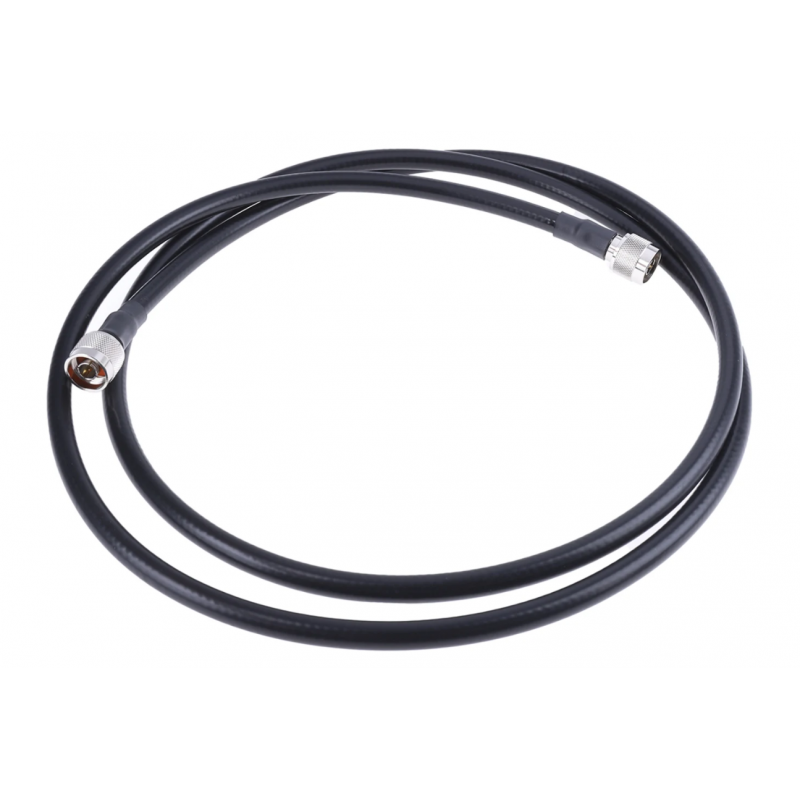

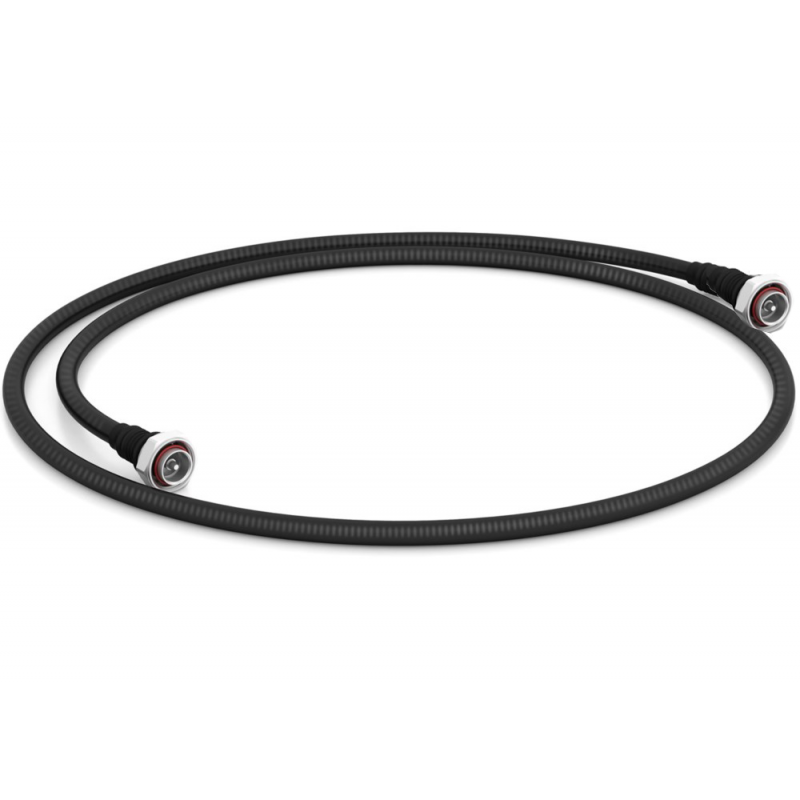

Jumper coaxial

Transmitter fm pro bbe 35 digital tropicalized stereo

 Green Power energy saving  Pièces  détachées disponibles 10 ans BBEAM

More details

More info

Belgian manufacture
Tropicalized equipment for difficult use - 120 x 120 pro ventilation for use without air conditioning
Produced in accordance with European CE and ETSI - SE directives
Digital audio quality, 16 kHz digital audio elliptical filter (7-pole elliptical filter)
Modulation limiter 75 kHz uses a circuit developed by B.BEAM inaudible, without distortion, with clipper output (switched when using an audio processor).
The 2 ppm crystal oscillator is temperature controlled (mini oven thermostat), ultra linear VCO.
The PLL uses professional Motorola components, frequency adjustable by DIP switches (not 50 kHz).
The MOSFET amplifier stages carry output power at 35 Watts (BBE35), 80 Watts (BBE80) and 100 Watts (BBE100).
An AGC circuit maintains constant power regardless of the VSWR. It protects the MOSFET transistors in the event of an antenna anomaly (VSWR).
The high frequency starts gradually to relieve amplifiers connected after the transmitter (SOFT START HF).
5 cell HF output filter
The power supply is stabilized and protected against voltage,
current and temperature.
Modular manufacturing; low cost rapid maintenance and troubleshooting
Lab test report attached to each device.
