6 cavity filter with cross-coupling filter

More info

SPECIFICATIONS

250 W

Frequency range

170 ÷ 230 MHz

Maximum Output Power

250 W

Input / Output Impedance

50 Ohm

Insertion loss @ Fo

< 1.8 dB

Insertion loss @ Fo ± 0.77 MHz

< 3.0 dB

Attenuation @ Fo ± 0,97 MHz

> 16 dB

Attenuation @ Fo ± 1,77 MHz

> 40 dB

Attenuation @ Fo ± 3 MHz

> 55 dB

Maximum Amplitude Variation

1.2 dB

Return Loss

> 22 dB

Max. Group Delay Variation

700 ns

Input/Output connectors

DIN 7-16

Temperature Range

-10 ÷ +50 °C

Weight

14 kg

500 W

Frequency range

170 ÷ 230 MHz

Maximum Output Power

500 W

Input/Output Impedance

50 Ohm

Insertion Loss @ Fo

 < 1.3 dB

Insertion Loss @ Fo ± 0,77 MHz

 < 2.5 dB

Attenuation @ Fo ± 0,97 MHz

 > 16 dB

Attenuation @ Fo ± 1,77 MHz

 > 40 dB

Attenuation @ Fo ± 3 MHz

 > 55 dB

Maximum amplitude variation

1.2 dB

Return Loss

 > 22 dB

Max. Group Delay Variation

600 ns

In/Out connectors

EIA 7/8”

Temperatures Range

 -10 ÷ +50 °C

Weight

18 kg

1 KW

Frequency Range

170 ÷ 230 MHz

Maximum Output Power

1 kW

Input/ Output Impedance

50 Ohm

Insertion Loss @ Fo

 < 1.2 dB

Insertion Loss @ Fo ± 0,77 MHz

< 2.2 dB

Attenuation @ Fo ± 0,97 MHz

 > 20 dB

Attenuation @ Fo ± 1,77 MHz

 > 43 dB

Attenuation @ Fo ± 3 MHz

 > 72 dB

Maximum amplitude variation

1 dB

Return Loss

 > 22 dB

Max. Group Delay variation

500 ns

In/Out connectors

EIA 7/8”

Temperature Range

 -10 ÷ +50 °C

Weight

45 kg

1.2 KW

Frequency Range

170 ÷ 230 MHz

Maximum Output Power

1.2 kW

Input/Output Impedance

50 Ohm

Insertion Loss @ Fo

 < 1.0 dB

Insertion Loss @ Fo ± 0,77 MHz

 < 2.2 dB

Attenuation @ Fo ± 0,97 MHz

 > 16 dB

Attenuation @ Fo ± 1,77 MHz

 > 40 dB

Attenuation @ Fo ± 3 MHz

 > 55 dB

Maximum amplitude variation

1.2 dB

Return Loss

 > 22 dB

Max. Group Delay Variation

600 ns

In/Out connectors

EIA 7/8”

Temperature Range

 -10 ÷ +50 °C

Weight

23 kg

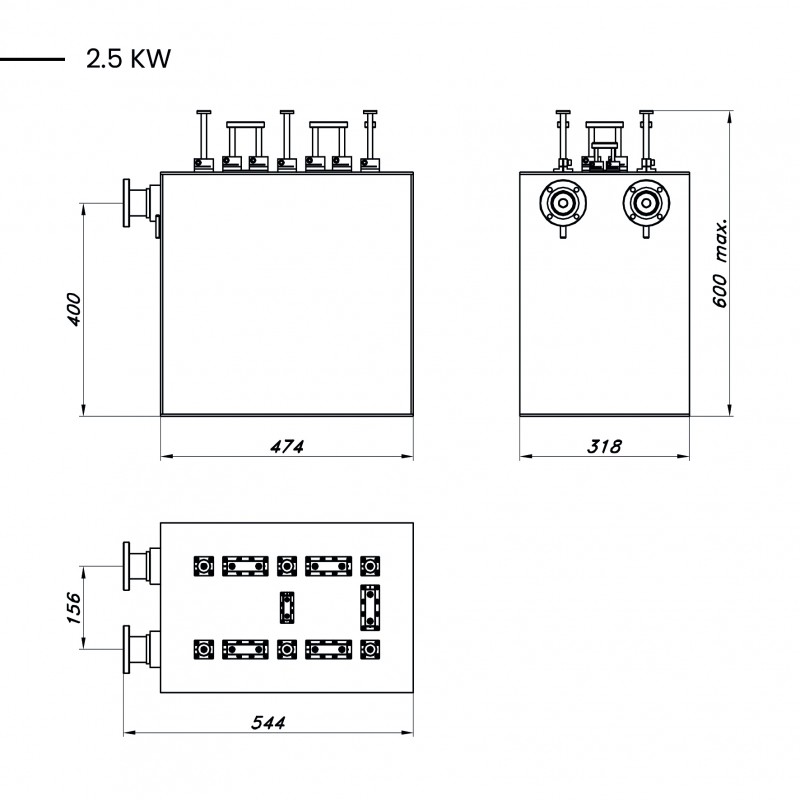

2.5 KW

Frequency Range

170 ÷ 230 MHz

Maximum Output Power

2.5 kW

Input/Output Impedance

50 Ohm

Insertion Loss @ Fo

 < 0.8 dB

Insertion Loss @ Fo ± 0,77 MHz

 < 2.0 dB

Attenuation @ Fo ± 0,97 MHz

 > 16 dB

Attenuation @ Fo ± 1,77 MHz

 > 40 dB

Attenuation @ Fo ± 3 MHz

 > 55 dB

Maximum amplitude variation

1.2 dB

Return Loss

 > 22 dB

Max. Group Delay Variation

600 ns

In/Out connectors

EIA 7/8”

Temperature Range

 -10 ÷ +50 °C

Weight

32 kg
